YLR-SBPP, YLS-SBPP

Product overview

• up to 100

  m/min
  laser cutting of 5 mm black steel with YLS-40000-SBPP
• up to 2

  m/min
  laser cutting of 100 mm black steel with YLS-40000-SBPP
• 120

  MW/cm²
  power density at the focus with a K100F200 cutting head with YLS-10000-SBPP

Key advantages and features

• Increasing the cutting speed
• Increasing the maximum thickness of processed material
• Reducing the seam width
• Power density 120 MW/cm²
• High-speed laser cutting of low-carbon (black) steel

Higher cutting speeds compress cycle time and cost per part, raise throughput, and maximise machine utilisation for stronger profitability.

An expanded thickness envelope lets more parts be processed by laser, reducing reliance on slower methods and improving overall production economics.

A narrower kerf enables tighter nesting, cutting material wastage and lifting sheet utilisation — directly lowering scrap and unit costs.

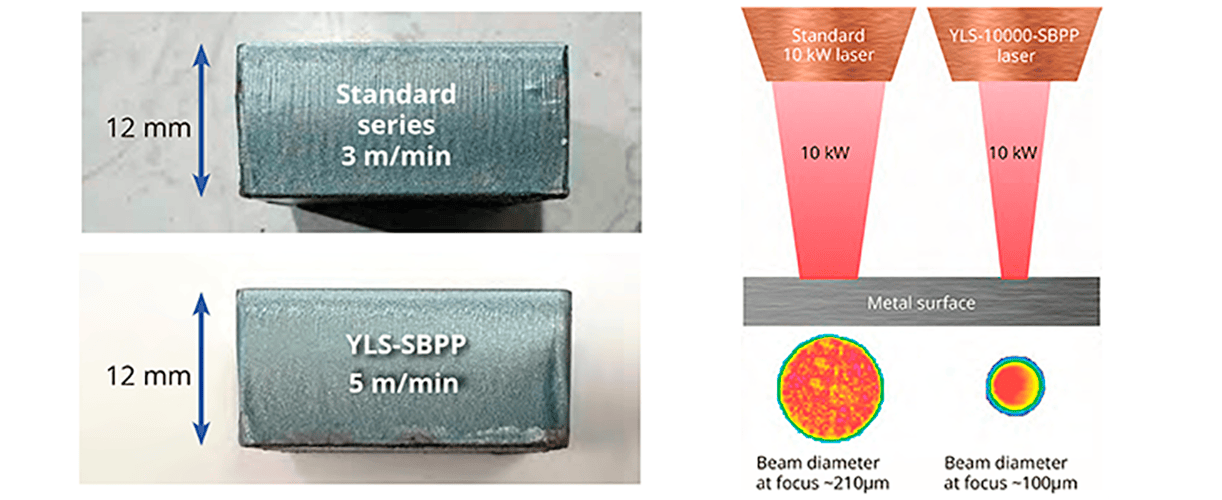

With a standard K100/F200 head and the YLS-10000-SBPP, the focus reaches ~120 MW/cm² power density, enabling rapid piercing and swift, accurate cutting of thick and reflective metals.

On low-carbon (“black”) steel, the same setup supports very high cutting speeds with clean edges and a minimal heat-affected zone.
